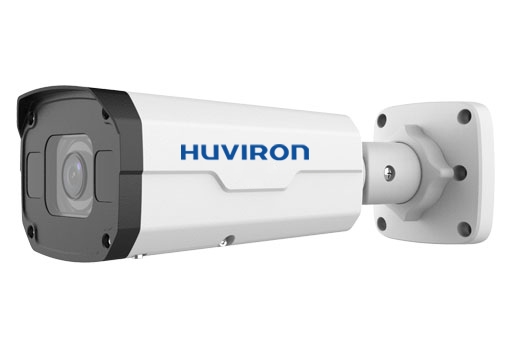

CAMERA HU-NP825DST/I5E-AF

Tính năng của camera HU-NP825DST/I5E-AF

. True WDR 120dB
. Chống nhiễu 2D/3D DNR
. Tính năng thông minh:Phát hiện vượt vạch kẻ, phát hiện xâm nhập vùng cấm, phát hiện chuyển động, phát hiện âm thanh, đếm số người, cảnh báo phá hoại...
. Hỗ trợ thẻ nhớ micro SD, lên đến 256GB
. Hỗ trợ Onvif
. Hỗ trợ đàm thoại 2 chiều(kết nối loa, mic ngoài)
. Tích hợp cổng kết nối vào/ ra âm thanh
. Tích hợp 1 đầu vào, 1 đầu ra cảnh báo
. Kết nối Cloud Server Việt Nam
   + Hu-viewer Plus(Android, iOS)
   + Phần mềm HU-VMS cho máy tính

Model HU-NP825DST/I5E-AF

Camera

• Image Sensor 1/2.8“ CMOS sensor
• Resolution 8Mp
• Minimum Illumination Colour: 0.0025Lux (F1.6, AGC ON), 0Lux with IR on
• Adjustment Angle: Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360°
• S/N >56dB
• WDR 120dB

Lens

• Focus length 2.8 ~ 12mm
• Lens Type: Auto Focus
• View Angle H: 107.4° ~ 29.2°, V: 54.2° ~ 16.3°, O: 110.0° ~ 33.1°
• DORI distance D: 86.9 ~ 327.4m, O: 34.8 ~ 149.0m, R: 17.4 ~ 74.5m, I: 8.7 ~ 37.2m

Night vision

• IR range: Up to 50m

Video

• Video Compression: Ultra 265, H.265, H.264, MJPEG
• H.264 code profile: Baseline profile, Main profile, High profile
• Frame Rate Main Stream: 8MP (3840*2160), Max 20fps;5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max30fps; 1080P (1920*1080), Max 30fps Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps
• Bit Rate: 128 Kbps ~ 16 Mbps
• U-code: Support
• OSD: Up to 8 OSDs
• Privacy Mask: Up to 4 areas
• ROI: Up to 8 areas


• White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Flip: Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
• Dewarping: Support
• HLC: Support
• BLC: Support
• Defog: Digital Defog

Smart

• Basic Detection: Motion detection, Ultra motion detection, Tampering alarm, Audio detection
• General Function: Watermark, IP address filtering, tampering alarm, alarm input, alarm output, access policy, ARP protection, RTSP authentication, user authentication

Intelligent

• Smart intrusion prevention: Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection
• Statistical Analysis: People counting, support people flow counting and crowd density monitoring

Audio

• Audio Compression: G.711
• Audio Bitrate: 64 Kbps
• Two-way Audio: Support
• Sampling Rate: 8KHZ

Storage

• Edge Storage: Micro SD, up to 256GB
• Network Storage: ANR, NAS (NFS)

Network

• Protocols: IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH
• Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API , SDK
• Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
• Client: Hu Viewer Plus, HU VMS
• Web Browser: Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above. Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above

Interface

• Audio I/O: Input: impedance 35kΩ; amplitude 2V [p-p]. Output: impedance 600Ω; amplitude 2V [p-p]
• Alarm I/O: 1/1
• Built-in Mic: N/A
• Built-in Speaker: N/A
• Video Output: N/A
• Network: 1 x RJ45 10M/100M Base-TX Ethernet

General

• Power: DC 12V±25%, PoE (IEEE 802.3af), Max 10.5W
• Dimensions: 245 × 86 × 72mm (9.6” × 3.4” × 2.8”)
• Weight: 0.92kg
• Material: Metal
• Storage Environment: -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing)
• Working Environment: -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing
